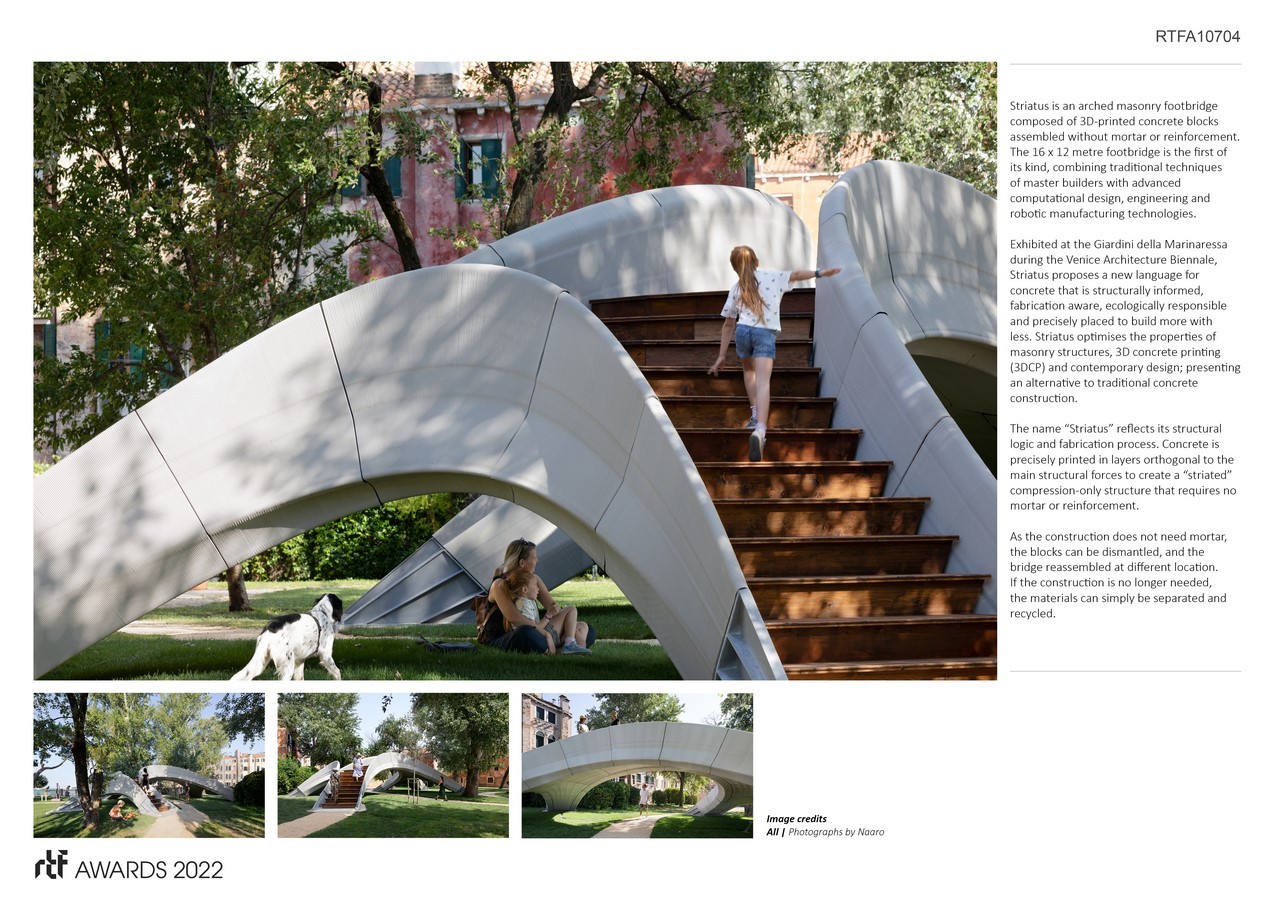

Striatus is an arched masonry footbridge composed of 3D-printed concrete blocks assembled without mortar or reinforcement. The 16 x 12 metre footbridge is the first of its kind, combining traditional techniques of master builders with advanced computational design, engineering and robotic manufacturing technologies.

Rethinking The Future Awards 2022
First Award | Architectural Innovation of the year (Built)

Project Name: Striatus
Studio Name: Zaha Hadid Architects
Design Team:
Striatus has been developed by the Block Research Group (BRG) at ETH Zurich and Zaha Hadid Architects Computation and Design Group (ZHACODE), in collaboration with incremental3D (in3D) and made possible by Holcim.

Total surface area = 216 m2
Total covered area = 50 m2
Year: 2021
Location: Venice, Italy
Consultants: N/A
Photography Credits: Photographs by Naaro

Striatus | Zaha Hadid Architects - Sheet1

Exhibited at the Giardini della Marinaressa during the Venice Architecture Biennale, Striatus proposes a new language for concrete that is structurally informed, fabrication aware, ecologically responsible and precisely placed to build more with less. Striatus optimises the properties of masonry structures, 3D concrete printing (3DCP) and contemporary design; presenting an alternative to traditional concrete construction.

Striatus | Zaha Hadid Architects - Sheet2

The name “Striatus” reflects its structural logic and fabrication process. Concrete is precisely printed in layers orthogonal to the main structural forces to create a “striated” compression-only structure that requires no mortar or reinforcement.

Striatus | Zaha Hadid Architects - Sheet3

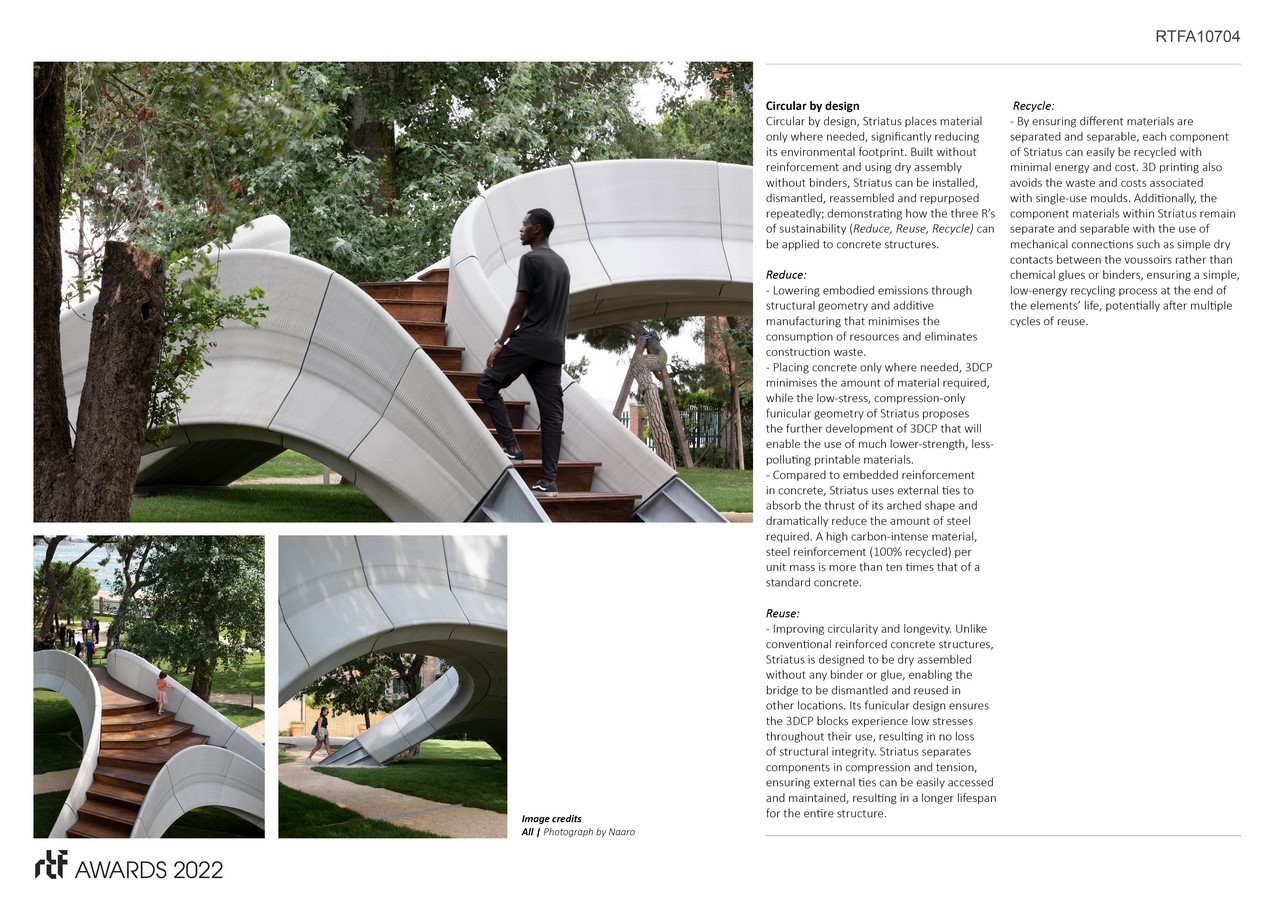

As the construction does not need mortar, the blocks can be dismantled, and the bridge reassembled at different location. If the construction is no longer needed, the materials can simply be separated and recycled.
